Product Information

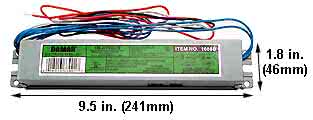

01688B
Additional Images
Line DiagramWiring Diagram

Description:EL232-120/277HF
120 TO 277 VOLTS
Volts:120-277
Average Life Hours:Date Coded
Finish:Gray
CUSUL:YES
Ballast Type:Electronic
Start Method:Instant Start
Minimum Start Temperature:0oF (-18oC)
Package Qty:1
Case Qty:10
Additional Info:G13 MEDIUM BI-PIN LAMPS.
OPERATES 1 OR 2 LAMPS
F17T8
F25T8
F30T8
F32T8
F36T8(TLD36W)
F40LTT/4P(PL-L40W)
OR 1 F40T8 LAMP
INHERENT THERMAL PROTECTION
NO PCBS
SOUND RATING: CLASS A
HIGH POWER FACTOR CLASS P
HIGH FREQUENCY OPERATION
POWER FACTOR: 0.99
HARMONIC VALUE: 10% MAX THD
WARRANT INFO: 5 YEARS FROM DATE CODE STAMPED ON BALLAST
BALLAST EFF FACTOR: 1.54
BALLAST FACTOR: 0.88
MSDS:Title 29 C.F.R. Section 1910.1200, entitled "Hazard Communication" establishes the Federal Government's requirements for the maintenance and distribution of information about the hazards of chemicals through MSDS(Material Safety Data Sheet). Subsection (b)(6)(v) of the regulation states that the Hazard Communication Standard does not apply to "Articles". An "Article" is defined as a manufactured item: (i) which is formed to a specific shape or design during manufacture, (ii) which has end use function dependent in whole or in part upon its shape or design during end use, and (iii) which under normal conditions of use does not release more than very small quantities, e.g., minute or trace amounts of a hazardous chemical, and does not pose a physical hazard or health risk. This product is classified as an "Article", and in line with the Federal Regulations an MSDS is not available for this product."

* This item will be shipped via UPS.

Cross Reference Items
Brand NameCorresponding Item Number
* All NON Alpha-Numeric characters have been removed.
AdvanceICN2P32SC
AdvanceRCN1S32
AdvanceRCN1TTP40SC
AdvanceRCN2S32
AdvanceRCN2TTP40SC
AdvanceREL1P32SC
AdvanceREL1TTS40
AdvanceREL2P17RHTP
AdvanceREL2P32SC
AdvanceREL2TTS40
AdvanceVCN1S32
AdvanceVCN1TTP40SC
AdvanceVCN2S32
AdvanceVCN2TTP40SC
AdvanceVEL1P32SC
AdvanceVEL1TTS40
AdvanceVEL2P17RHTP
AdvanceVEL2P32SC
AdvanceVEL2TTS40
Universal/MagnetekB132I120
Universal/MagnetekB132I127
Universal/MagnetekB132IUNV
Universal/MagnetekB132P120
Universal/MagnetekB132P277
Universal/MagnetekB132PUNV
Universal/MagnetekB232I120
Universal/MagnetekB232I1277
Universal/MagnetekB232I220
Universal/MagnetekB232I277
Universal/MagnetekB232IUNV
Universal/MagnetekB232P120
Universal/MagnetekB232P277
Universal/MagnetekB232PUNV


Item #: 01688B

Price Each: $16.95


Save When You Buy Bulk!

Buy a Case of 10
and Save 5%!
Price Each: $16.10
